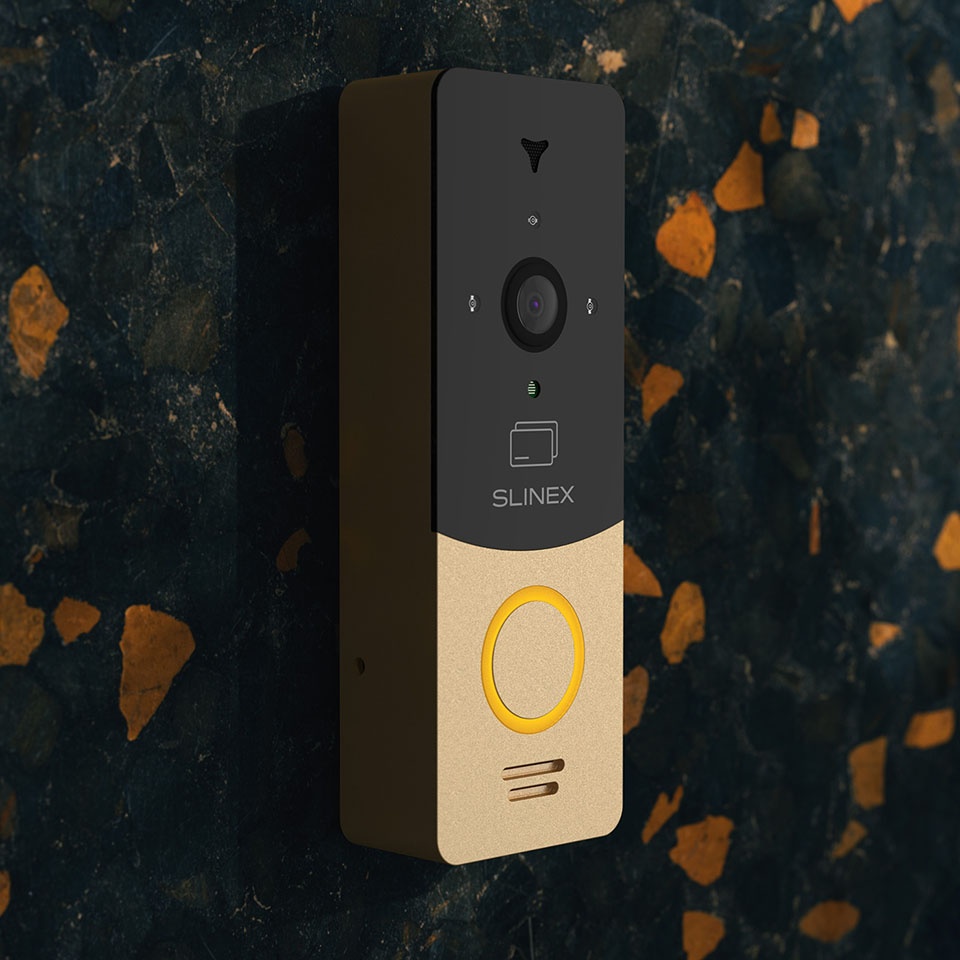

Slinex ML-20CRHD
Individual outdoor panel with wide view angle, AHD/CVBS support and wireless ID card reader
- Backlight of the button
- Resolution 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS)
- EM-Marin card reader
Couleurs
Slinex ML-20CRHD
Individual outdoor panel with wide view angle, AHD/CVBS support and wireless ID card reader
- Backlight of the button
- Resolution 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS)
- EM-Marin card reader
Couleurs
Description
Description
Introducing the ML-20CRHD – a unique outdoor panel that offers refined style, a high-quality 2-megapixel camera, and an EM-Marin card reader for easy access control. With support for any analog monitors, this device is perfect for granting access to the premises to anyone you deem necessary.
Proximity card reader
Equipped with an EM-Marin proximity card reader, the ML-20CRHD can store up to 248 unique identifiers in its secure memory. This feature makes it easy to provide access to the premises for authorized personnel. Additionally, the panel has a Wiegand-26 output, allowing it to be connected to a third-party ACS system.
Camera
The ML-20CRHD's 2-megapixel AHD camera boasts a wide 115° viewing angle, providing Full HD pictures and videos with incredibly sharp detail. Even at night, the IR illumination with a mechanical filter allows you to clearly see who's ringing at the door.
Features
If your video door phone doesn't support the AHD standard for video recording, the ML-20CRHD can be switched to CVBS mode using the button on the back of the device. The panel will operate with a maximum video resolution of 960 TVL. Compatible with almost any analog video intercom, the ML-20CRHD is a versatile solution for any premises.
Slinex ML-20CRHD – provide access to the premises for anyone you want.
Angle de vision horizontal
115°
Resolution de la camera
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
45×130×24 mm
Temperature de fonctionnement
-40 – +50 °С
Caractéristiques
- Caracteristiques uniques
- • Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR-cut filter
• Sensor type call button
• Video format switch button
• Access control – card reader EM-Marin - Type de capteur
- 1/4" CMOS
- Retroeclairage nocturne
- IR LED, up to 1.5 m
- Luminosite minimale
- 0,01 Lux
- Structure du boîtier
- Metal alloy
